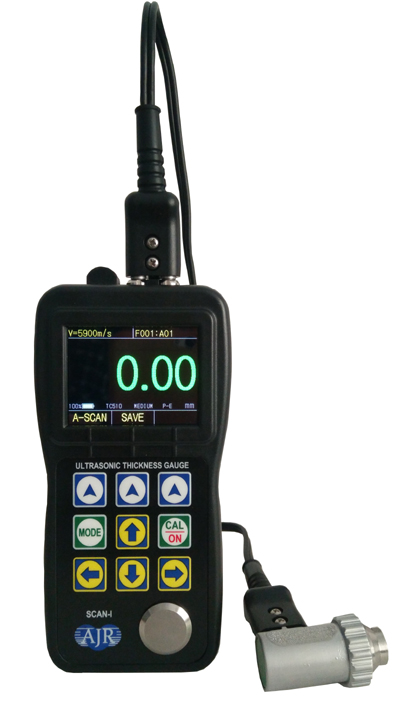

Scan-I A Scan Ultrasonic Thickness Gauge

Product Infomation
The Scan-I A scan ultrasonic thickness gage uses dual element transducers for corrosion applications. It offers many basic features such as Min/Max Mode that measures and recalls the minimum thickness at a fast 20 readings per second, Freeze Mode to instantly capture critical thickness, and Zero Compensation, A-scan display for echo-echo measurement.
  • Model:Scan-I
  • Specifications:0.6 mm - 508 mm, ( 0.008 - 20 inches )
  • Color:Black
  • Brand:AJR
Details

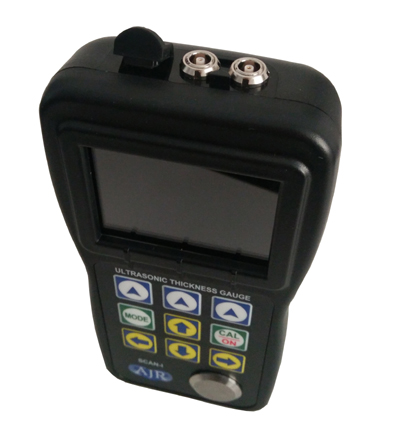

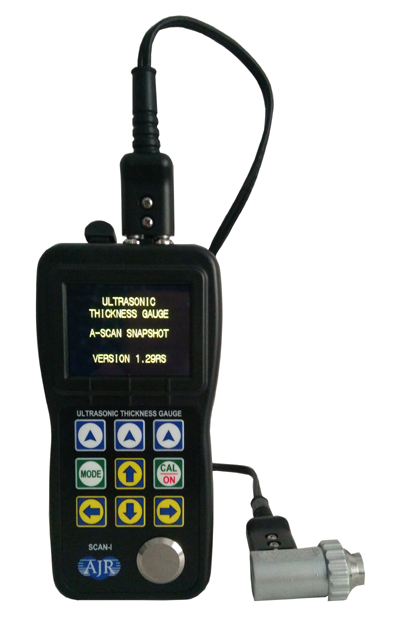

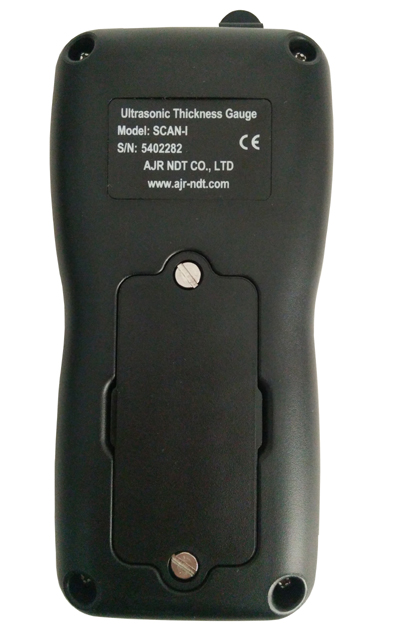

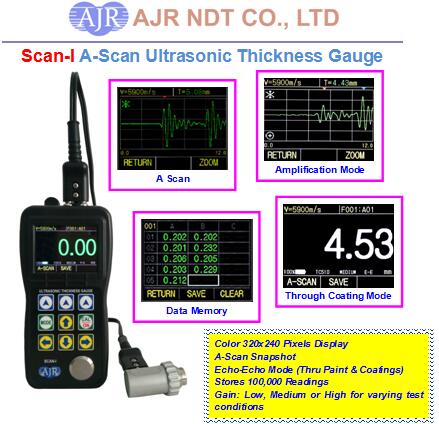

AJR Scan-I  A-Scan Ultrasonic Thickness Gauge

Feature

Color 320x240 Pixels Display

A-Scan Snapshot

Echo-Echo Mode(Thru Paint & Coatings)

Stores 100,000Readings
Gain: Low, Medium or High for varying test conditions

Scan-I Series Technical Specifications

Feature

Scan-I

Color Display

ü

A-Scan Snapshot

ü

Gain: Low, Medium, High

ü

Min/Max Capture

ü

DIFF/RR%

ü

Thru-paint

ü

Data Logger

ü

DataView Software

ü

Instrument Specifications

Display Type

2.4" color OLED, 320 X 240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.60mm to508mm(0.025" to 20.00"), depending on material, probe  and surface condition

Measuring Resolution

Selectable0.01mm,0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Gain

Low, Medium or High for varying test conditions

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

Material VelocityRange

500 to9999m/s (0.0197 to0.3937in/us)

Languages

Selectable Chinese, English, Japanese

Alarm Settings

Minimum and Maximum alarms. Range of0.25 mmto508 mm(0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity

Operating Temperature

-10°C to +50°C(+10°Fto +120°F)

Size

153mm X76mmX37mm(H X W X D)

Weight

280g including batteries

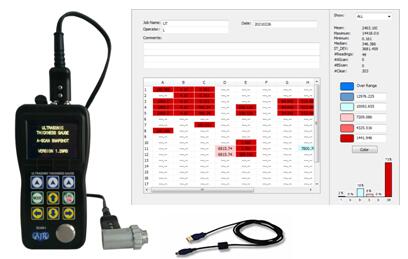

Data Logger Option Features

Capacity

400 files, 100,000 readings

File Structure

Grid file

Rows X Columns

21 X 12

Communication Port

USB 2.0 (Full Speed ) port

Software

DataView PC software


SCAN-I Probe/Transducer Specifications

Model

PT08

TC510

PT12

ZT12

PT06

PT04

GT12

Type

Common

SCAN-I

Standard

Standard

Cast iron

Small tube

Fingertip

High-Temperature

Frequency

5MHz

5MHz

5MHz

2MHz

7.5MHz

10MHz

5MHz

Contact Diameter

11mm

13.5mm

13.5mm

17mm

8mm

6mm

15mm

Measurement Range

0.8 to
100.0mm

1.2 to
200.0mm

1.0 to 200.0mm

4.0 to
508.0mm

0.8 to
30.0mm

0.7 to 12.0mm

4.0 to
80.0mm

Temperature Range

-10 to 70

-10 to
70

-10 to 70

-10 to 70

-10 to
70

-10 to 70

-20 to 300

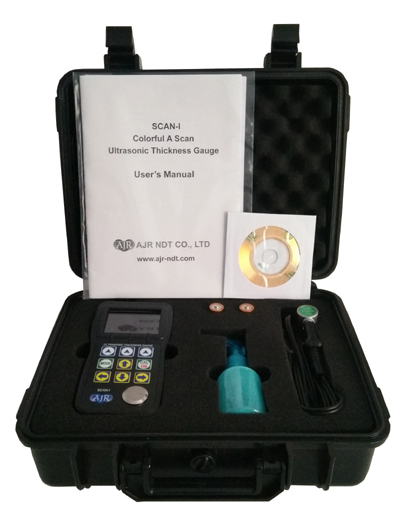

Standard Accessories:

No.

Item

Qty.

1

SCAN-I Series Main Machine

1

2

Standard Probe

1

3

Probe Cable

1

4

Couplant Bottle

1

5

Carrying Case

1

6

English Operation Manual

1

7

Data Software (only for Scan-I DL model)

1

8

Data Cable (only for Scan-I DL model)

1

9

Product Certificate

1

10

Packing List

1
