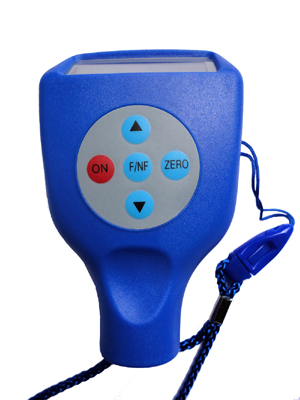

Coating Thcikness Gauge ACT2100 model

Introduction

 * It meets the standards of both ISO2178 and ISO-2361 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.

* The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).

(2)  Characteristic

*  Small style design, conveniently carry

* Complete intelligentized design, easily operate

* Rapid measure, excellent repeated performance

* Zero adjustment, second point adjustment

* LCD digital display

* The metric system /Englandsystem unit transform

* There is bee ring song prompt during operation

* Automatic probe recognition

* Manual or automatic shut down

Technology parameter

       * Range: 0-1250um

       * Accuracy: ±［（1%～3%）］H±1.5um

       * Resolution：0.1um (0~99.9um)

                                 1um (over 100um)

       * Environment temperature: 0-40℃

       * Relative humidity: ≤85%

        * Power supply: 1.5V×2

       * Weight:280g

       * Dimension: 102×66×24mm

Standard delivery:

    Main unit(1250um).............1pc

    Instruction manual............. 1pc

    Substrate..............................1pc

    Carrying case..................... 1pc

    Calibration foil set.............. 1 set
