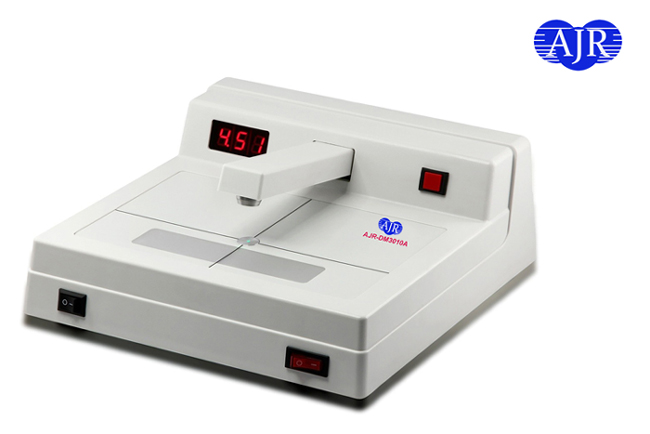

AJR AJD490/500/510 Black-White Densitometer
Introduction
The densitometer developed by our company, is a product of high quality with computer high technology assisted and THE FIRST ADOPTED CALIBRATION FUNCTION DOMESTICALLY. The accurate readings, high stability and easy operation are the main characteristics of our product. It can be widely applied to the fields such as nondestructive testing, publishing industry and medical science etc. Every densitometer is equipped with a density tablet for testing its precision.
Specification
|
Main Tech Data |
|
|
Density Range |
D=0.00—4.00 (AJD490) D=0.00—4.50 (AJD500) D=0.00—5.00 (AJD510) |
|
Repeatability |
±0.01 |
|
Measuring Error |
0.00—2.00 0.02 2.00—4.50 0.05 4.50—5.00 0.08 |
|
Power |
50 ~ 60Hz, 220V ± 10% |
|
Power Dissipation |
25W |
|
Aperture Size |
Dia.2mm |
|
Display Mode |
Three digital display |
|
Sampling Time |
0.8 s |
|
Communication Port |
RS232 Port |
|
Software |
DmCAL PC software |
|
Working Environment |
Temperature0 ℃~40 ℃, Relative humidity≤85% |
|
Dimension |
260×265×110 （H×W×L） |
|
Weight |
2.1kg |

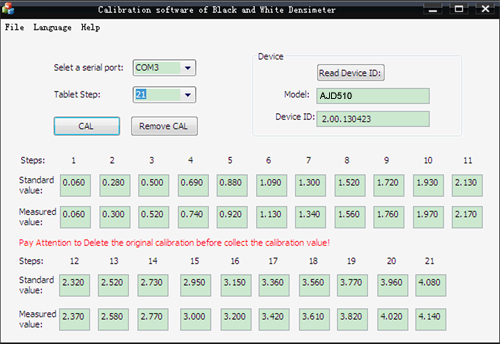

The Calibration Software Interface
Standard Configurations
NO.
Item
Qty
Remark
1
AJD490 / 500 / 510 Main Unit
1
2
Standard Density Tablet
1
3
Power Cable
1
4
Data Communication Cable
1
5
Data Software
1
6
Packing List
1
7
Product Certificate
1
8
Tablet Certificate
1
9
Guarantee Card
1
10
Manual
1
