AFD860 Ultrasonic Flaw Detector

Product Infomation
The AFD860 ultrasonic flaw detector is an ultra-light handy UT instrument of outstanding performance. Compatible with EN12668-1:2010. This instrument is mounted with TG TFT display of full WVGA (800×480 pixels) resolution for excelling visibility even used outdoors or in strong sunlight. Another amazing feature of this product is the “square wave drive” which realizes the user’s dream for best sensitivity and resolution. Moreover, it’s compatible with EN12668-1:2010, the popular instrumentation standards widely recognized in European and even the international market. Weighing only 0.9kg, this apparatus enables the user to carry it just like an on-hand tool for instant inspection task. All these distinct advantages make it superior as compared to its counterparts.
  • Model:AFD860
  • Specifications:0~10000mm
  • Color:Black
  • Brand:AJR
Details

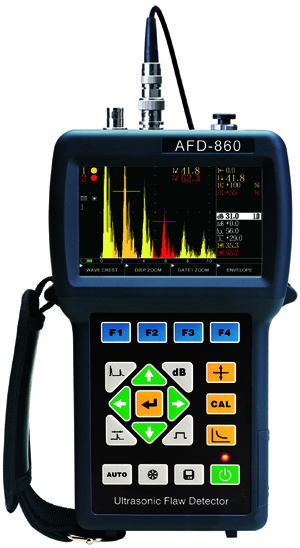

AFD860 Digital Ultrasonic Flaw Detector

Introduction

The AFD860 is an ultra-light handy UT instrument of outstanding performance. Compatible with EN12668-1:2010. This instrument is mounted with TG TFT display of full WVGA (800×480 pixels) resolution for excelling visibility even used outdoors or in strong sunlight. Another amazing feature of this product is the “square wave drive” which realizes the user’s dream for best sensitivity and resolution. Moreover, it’s compatible with EN12668-1:2010, the popular instrumentation standards widely recognized in European and even the international market. Weighing only 0.9kg, this apparatus enables the user to carry it just like an on-hand tool for instant inspection task. All these distinct advantages make it superior as compared to its counterparts.

Highlights of AFD860 ultrasonic flaw detector

Ø SquareWave Drive

Ø 800X480 Pixels

Ø Curved Surface Consideration

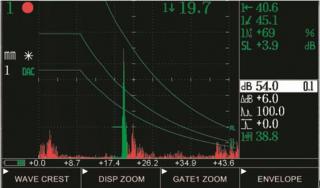

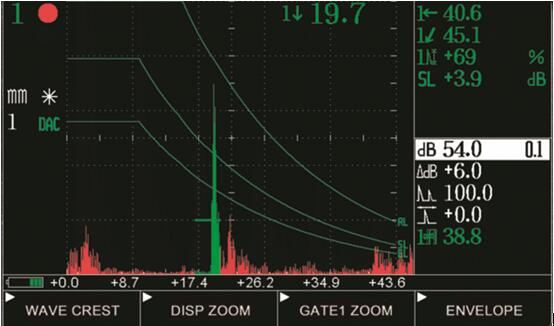

Ø DGS & DAC functional Curve

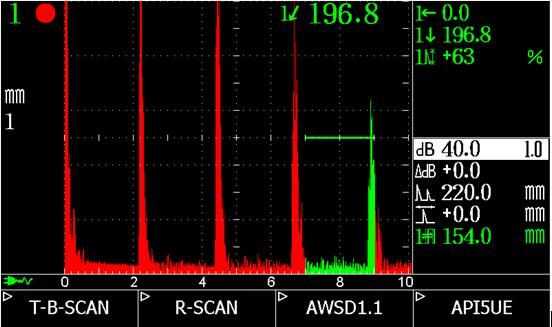

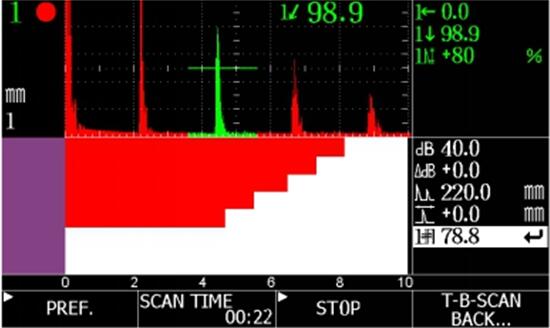

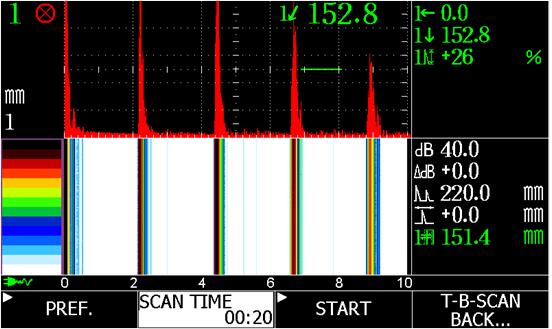

Ø B-Scan

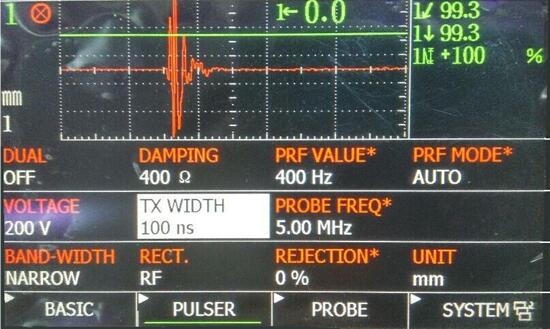

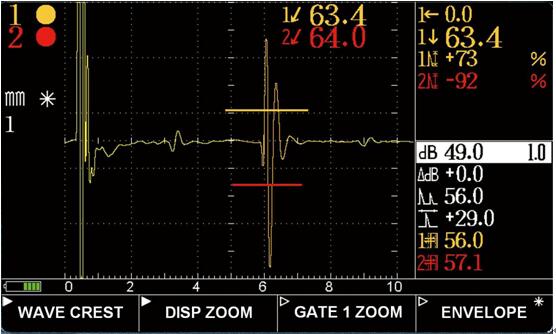

Ø RF Wave forming Mode

Ø Velocity/Delay/Angle Calibration

Ø Recording (1 Hour in Total)

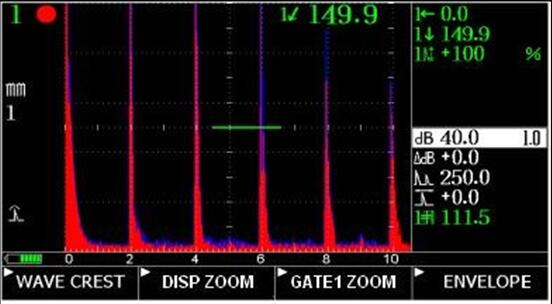

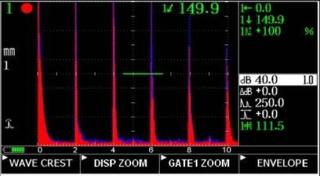

Ø Echo Crest Tracking

Ø Enveloping (for Waveform Comparison)

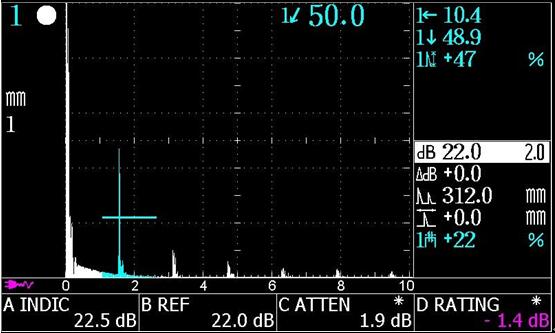

Ø AWS D1.1 Evaluation Module

Ø API 5UE Evaluation Module

Ø Performance Indices Test

Ø 1000 Frames of A-scan Storage

Ø Com App for PC Review and Report Print

Ø 0.9kg in Weight

Features

Ø Advanced circuitry, 640MHz sampling frequency and 800×480 full WVGA resolution assure quick and accurate display and analysis on defect signals even when the signals are weak.

Ø Using the advanced tunable square wave excitation technology, the AFD860 provides excellent penetration and high signal-to-noise ratio when detecting special composite materials, highly-attenuated or thick work-pieces.

Ø 4.3 inches display, set-in battery and charger, but only0.9kgin weight which make it easy to operate and carry along.

Ø The design meets the standard of IP54 certification and compatible with EN12668:2000 standard.

Ø With full WVGA TFT display at industrial level, this instrument offers fine images at different angles.

Ø Optimized panel, user-friendly design for the menu, easy and fast to operate no matter you use the left hand or right hand. Various input modes, English menu optional.

Ø Auto-calibration function including fast calibrating material velocity, probe delay and probe angle.

Ø Zoom function for in-gate waveform enables users to observe the waveform detail conveniently. Zoom function for waveform display area and optimized height-to-width rate of the screen ensure echo with higher resolution.

Ø DAC: Easy to make, correct, store and recall DAC.

Ø Built-in intelligent lithium battery charger. Power supplied by battery or AC mains and it can automatically display the power supply modes. Auto switch between “charge” and “work”.

Ø Long battery life of over 8 hours ensures your continuous work.

Ø External USB port for software updating, data transferring and printing and access to devises such as mouse, keyboard and U-disk.

Specifications

Attenuator Error

Per 12dB ±1dB

Equivalent Input Noise

<80×10-9 V/√HZ^

Pulse Type

-Ve square wave pulse, Transmitter pulse voltage: 25~250V; tunable with 25V per step

Pulse Width: 30-1000ns tunable with 5ns per step, Auto / Manual

Working Modes

Pulse echo and dual and through transmission

Damping

400 / 80 Ohm

Working Frequency

Broadband / Narrowband

Broadband: 0.5~20MHz; Narrowband: 1.5~3MHz

Gain

0.0~110.0 dB; Step: 0.1 / 1.0 / 2.0 / 6.0 dB

Material Velocity

100015000m/s tunable;

Set-in 30 common material velocities as optional

Test Range

0.010000mm Longitudinal wave at steel velocity;

Range continuously variable with minimum0.1mmincrements

Rectification

Positive half-wave, Negative half-wave, Full wave, RF

Gate & Alarm

Real-time alarm signal, positive and negative thresholds, minimum depth, DAC alarm optional

Measuring mode: Select front edge or peak of pulse wave in gate

Display

4.3" industrial-leveled TFT color LCD with 800×480 pixels WVGA resolution

Pulse Shift

-7.5~3000μs

Probe Zero

0~999.9μs

Pulse Repetition Frequency

25~800Hz, auto adaptation/manual adjustment

Vertical Linearity Error

≤3%

Horizontal Linearity Error

≤0.2%

Sensitivity Surplus

≥60dB (200mm, Φ2 FBH)

Instrument Resolution

≥36dB (mated with 5MHzΦ14 transducer)

Dynamic Range

≥32dB

Rejection

(0~90) %, without any dent to linearity or gain

NL (Electric Noise Level)

10%

Ports

BNC / LEMO

USB HOST

Power Supply

Large-capacity Li-Ion battery(11.1V, 4400mAh) without memory effect; battery life: 8+ hrs;

Battery charger; AC: 100-240V, 50Hz-60Hz

Dust\ Splash\ Water Proof

IP54

UT Standards

Compatible with EN12668-1

Ambient Temperature

-30~50℃

Relative Humidity

20%~95%

Weight

Around0.9kg(with battery)

Dimension

Upper Part:215mm×126mm×53mm

Lower Part:215mm×104mm×42mm

Standard Accessories

No.

Item

Quantity

1

AFD860 Main Body

1

2

Straight Beam Probe: 2MHz,20mm, BNC Connector

1

3

Angle Probe: 2.5MHz, 13x13mm, 45 Degree, BNC Connector

1

4

Echo Probe For Horizontal Linearity Calibration

1

5

Machine-probe Cable

2

6

Screw Driver

1

7

Power Adapter (Charger)

1

8

Power  Cable

1

9

RechargeableBattery

1

10

Sling Belt

1

11

Leather Sheath

1

12

Data Software for PC

1

13

Instrument Case

1

14

Manual

1

15

Guarantee Card

1

16

Packing List

1

17

Calibration Certificate

1
