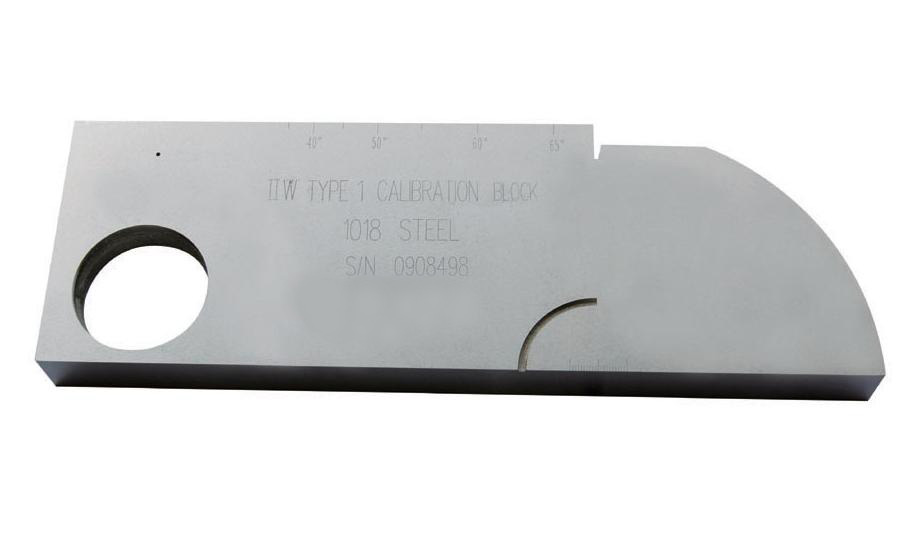

IIW Type 1 (V1) AWS Standard Ultrasonic Calibration Test Block

Product Infomation

IIW Type 1 test block is used for calibration of shear and longitudinal transducers, and verification of shear wedge exit point and refracted angle. Can also be used for resolution and sensitivity checking. • In accordance with AWS D1.1/D1.1M specifications. • Dimensions: 300mm（12.0"） x100mm（4.0"） x 25mm（1.0"）

Model:V1
Specifications:AWS D1.1/D1.1M-2006IIW-1
Color:Silver
Brand:AJR

Details

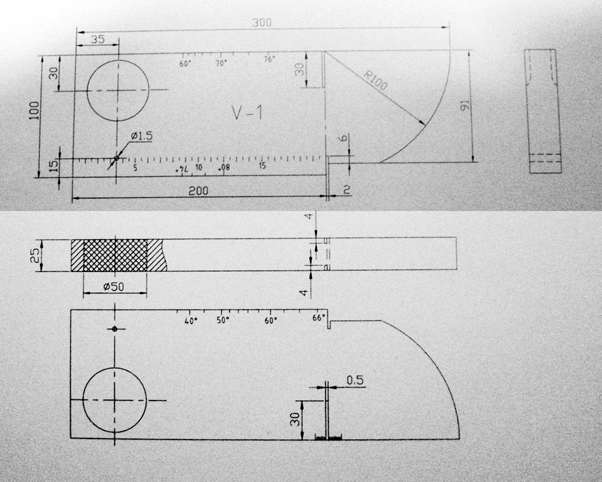

IIW Type 1 Ultrasonic Calibration Test Block

• In accordance with AWS D1.1/D1.1M specifications.

• Dimensions: 300mm（12.0"） x100mm（4.0"） x 25mm（1.0"）

Next Product:IIW type-1 (V1): ASME Standard Ultrasonic Calibration Test Block

Prev Product:None
