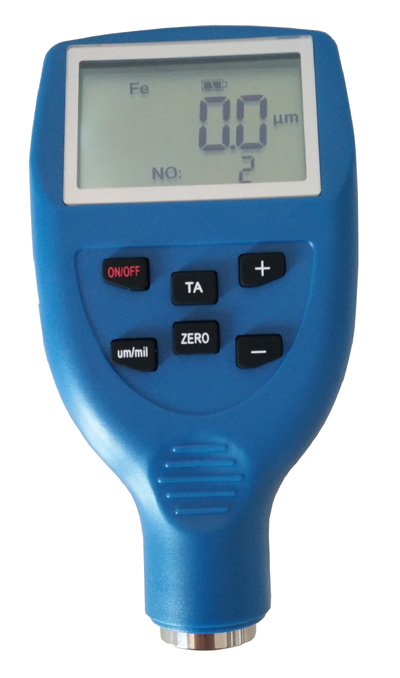

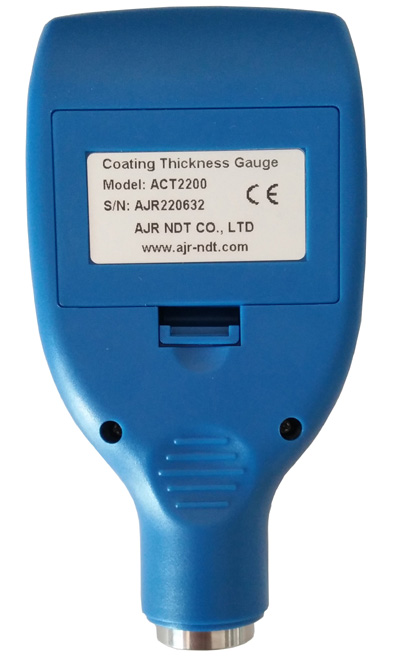

ACT2200 Coating Thickness Gauge

Product Infomation
ACT2200 coating thickness gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-magnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
  • Model:ACT2200
  • Specifications: 0-1250um
  • Color:Blue
  • Brand:AJR
Details

ACT2200 model Coating Thickness Gauge

Introduction

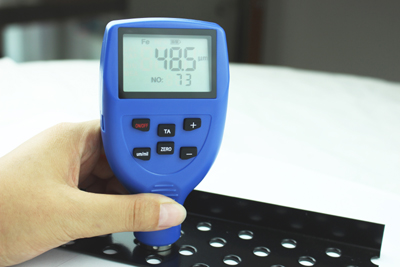

ACT2200 digital coating thickness gauge is a professional non-destructive testing instrument for measuring the thickness of metal surface coating covering objects. It uses the following different measurement methods depending on the metal substrate.

l        Magnetic Method: which can non-destructively measure the thickness of non-magnetic coatings (such as galvanized, chrome, paint, electrophoresis, enamel, rubber, powder, enamel) on magnetic metal substrates (such as: steel, iron, nickel), anti-corrosion layer, etc.)

l        Eddy Current Method: which can non-destructively measure the thickness of non-conductive coatings (such as: paint, powder, plastic, rubber, enamel, enamel, spray plastic, etc.) on non-magnetic metal substrates (such as: aluminum, copper, stainless steel)

Characteristic

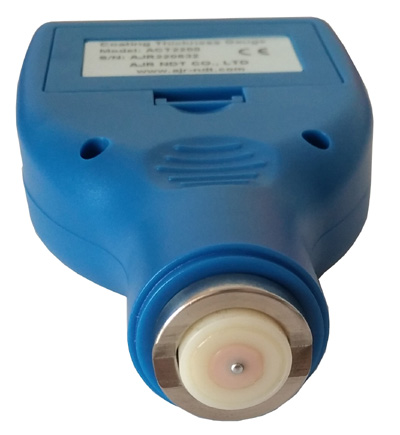

l        The use of alloy integrated probe.

l        Simple operation, fast test speed and high sensitivity.

l        Exquisite ergonomic integrated design, easy to carry.

l        Two test methods: continuous test (CONT INUE) and single (SINGLE) measurement method.

l        Statistical function: maximum value (MAX), minimum value (MIN), average value (MEA).

l        It can store 2000 measurement data (10 sets of data).

l        Two calibration methods: zero-point calibration and two-point calibration.

l        Buzzer alert during the operation (single measurement method).

l        Automatic identification of ferrous (F) and non-ferrous substrates (NF).

l        Low voltage indication.

l        Manual / Automatic shutdown function

l        Large LCD screen with backlight display, with screen rotation and inversion function.

l        Metric and inch conversion function: um/mil.

l        It can be connected to a computer for communication, read out and store data for saving or printing (Optional Bluetooth Function).

l        Wireless Bluetooth connection, real-time monitoring of mobile phone smart APP (Optional Bluetooth Function).

Specification

Measuring Principle

Magnetic Induction & Eddy Current

Measuring Range

0-1500μm

Resolution

0.1μm /1μ (<100μm: 0.1μm100μm:1μm)

Accuracy

±(3%Thickness+1.5) μm

Thinnest Substrate

0.4mm

Minimum Curvature

Convexity 5mm; Concavity 25mm

Minimum Test Area

18*15mm

Power

Three alkaline battery

Size

126mm*64mm*28mm

Weight

106G (Without battery)

Work Temperature

0℃-50℃,

Work Humidity

20%RH-90%RH

Strong Magnetic Field Environment

No

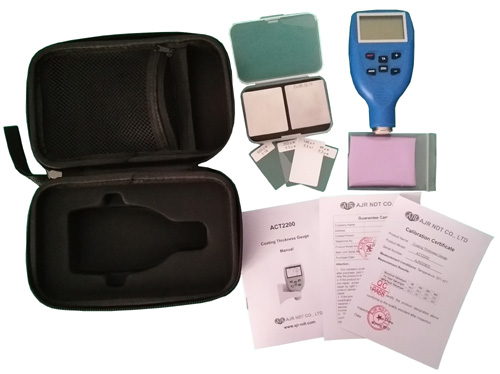

Standard Accessories:

No.

Item

Qty.

1

ACT2200 Main Unit

1

2

Calibration Sheet Foil

4

3

Substrate: F and NF

2

4

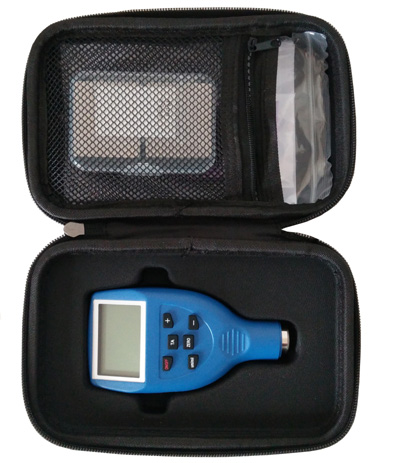

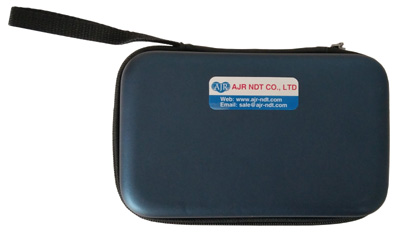

Portable Carry Bag

1

5

Cleaning Cloth

1

6

Manual

1

7

Calibration Certificate

1

8

Warranty Card

1
