ACH1000 Cross Hatch Adhesion Tester

Product Infomation
ACH1000 Cross Hatch Adhesion Tester also known as cross cut testing kits, this instrument is designed and manufactured according to ISO2409-1992 standard, suitable for GB/T9286-98, BS 3900 E6 / ASTM D3359, mainly suitable for the determination of organic paint cross-hatch adhesion. This instrument can be used in laboratories and construction sites under various conditions.

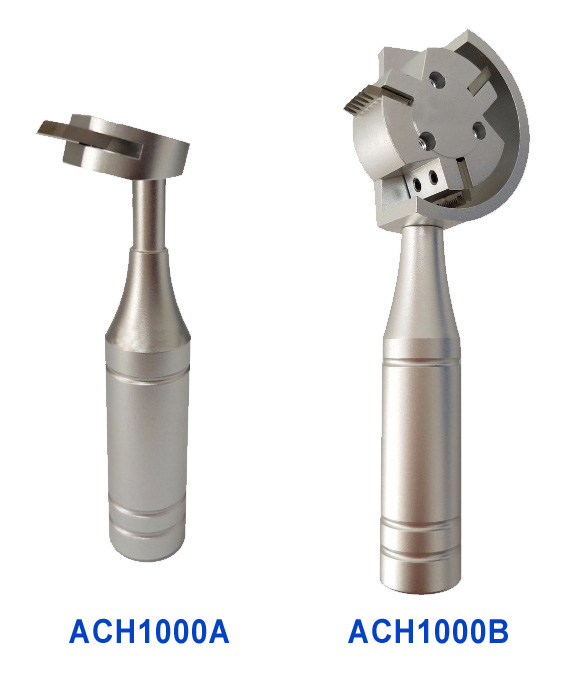

  • Model:ACH1000
  • Specifications:6 teeth, 11 teeth
  • Color:
  • Brand:AJR
Details

ACH1000 Cross Hatch Adhesion Tester

Introduction

ACH1000 Cross Hatch Adhesion Tester also known as cross cut testing kits, this instrument is designed and manufactured according to ISO2409-1992 standard, suitable for GB/T9286-98, BS 3900 E6 / ASTM D3359, mainly suitable for the determination of organic paint cross-hatch adhesion. This instrument can be used in laboratories and construction sites under various conditions.

Working Principle

The instrument uses a blade tool of a certain specification to cut and penetrate the coating into a grid pattern, and the completed pattern is classified according to six grades to evaluate the adhesion effect of the coating separation from the substrate.

Specification

Cutting Blade Tooth Gap Distance

1 + 0.01mm / 2 + 0.01mm / 3 + 0.01mm

Straightness of Cutting Blade Tooth Top

0.003mm / 0.006mm

Cutting tooth tip width

0.05mm

Coating Thickness Range

* Teeth x Gap: Range

6 x 1mm cutter: 0 - 60μm

6 x 2mm cutter: 61 - 120μm

6 x 3mm cutter: 121 - 250μm

11 x 1mm cutter: 0 - 60μm

11 x 2mm cutter: 61 - 120μm

11 x 3mm cutter: 121 - 250μm

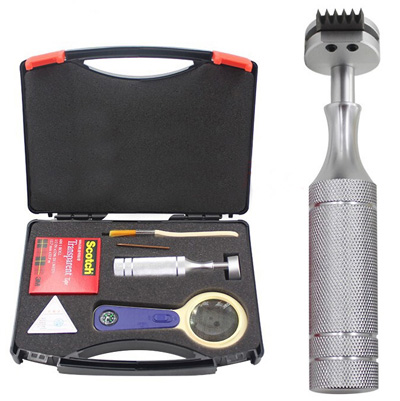

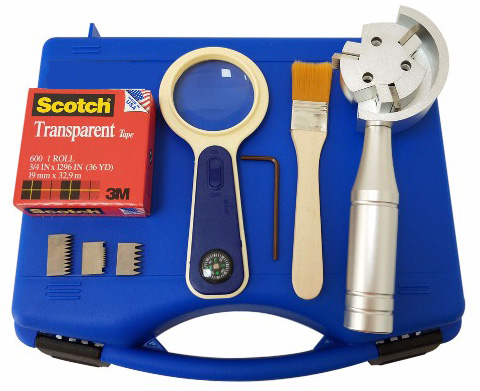

Standard Accessories

No.

Item

Qty.

1

AJR ACH1000 Metal Handle

1

2

Blade

2

3

Brush

1

4

Magnifying Glass with Light

1

5

Allen Wrench

1

6

Scotch Transparent Tape

1

7

Carry Box

1

8

Manual

1

9

Product Certificate

1
