AJH720 Portable Integrated Hardness Tester

Product Infomation
The Unigue design portable metal hardness test of AJH720 convinces with precise measurements on most metals. It offers the same features as the common hardness test but also allows user defined hardness conversions.Max 600 groups of data can be stored in memory.USB interface. Bluetooth included, can be connected with printer through Bluetooth
  • Model:AJH720
  • Specifications:(170-960)HLD,(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV、(30~110)HS
  • Color:Grey
  • Brand:AJR
Details

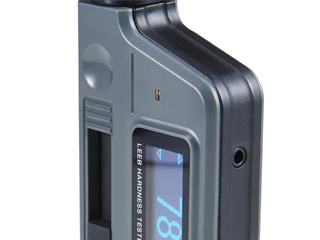

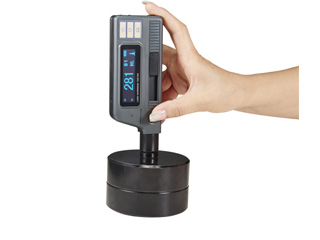

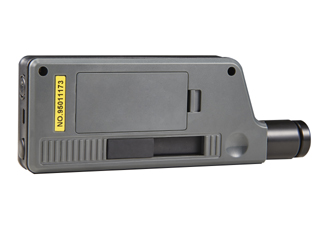

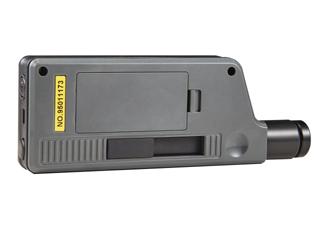

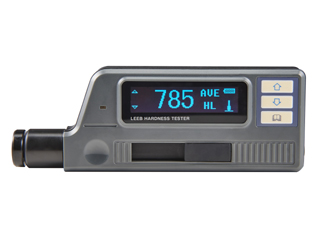

AJH720 Portable Hardness Tester

l         Customaries curve for a specific testing material

l         AJH720: OLED display of 128×32 matrix

l         Converts to all common hardness scales (HL, HV, HB, HRC, HRB, HRA, HS).

l         Easy to use Menu driven system

l         With mini USB interface, multiple communication modes are adopted to meet customized requirements of various users.

l         Max 600 groups of data can be stored in memory.

l         Upper and lower limit of hardness can be preset; with alarm

l         Test values software calibration function.

l         Working voltage: 3.7V Rechargeable Li-Ion battery

l         Continuous working period: approx. 50 hour .

l         Bluetooth included, can be connected with printer through Bluetooth

l         The machine also include  interface to connect with Impact device Type CDCGD+15DL

l         Smart and skid proof design

l         Charging indicator

Note: The product uses the international popular streamlined plastic shell, ergonomic design. Surface anti-skid treatment, feel fine, soft, lightweight and durable. And has excellent resistance to electromagnetic, anti-vibration and other interference.

Technical Specifications:

l         Measuring range: HLD(170~960)HLD

l         Measuring direction: 360°

l         Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS

l         Display: OLED, 128×32 matrix OLED

l         Data memory: up to 600 groups

l         Range of upper and lower limit: the same as measuring range

l         Rechargeable Li-Ion battery with no memorability

l         Continuous working period: approx. 50 h

l        Communication interface: mini USB

l         Outline dimensions:153 × 54 × 24mm

l         Wight: 250g

Main Application

l         The assembled machinery and permanently installed parts

l         Die cavity of molds

l         Heavy work piece

l         Failure analysis of pressure vessel, steam turbo-generator set and other large equipment

l         Testing of parts in confined areas or on gear teeth

l         Bearings and other parts

l         Material identification of the metal material warehouse

Configuration:



No.

Item

Quantity

Remarks

Standard Configuration

1

AJH720 Main unit

1



2

Small Supporting Ring

1



3

Standard test block

1



4

Cleaning brush

1



5

Charger

1



6

USB Cable

1



7

Data software

1



8

Calibration Certificate

1



9

Packing List

1



10

Guarantee Card

1



11

Manual

1



12

Instrument package case

1



Optional Accessories

13

Other Types Imact Device: DC / D+15 / G / C / DL

1



14

All kinds of special support ring

1
