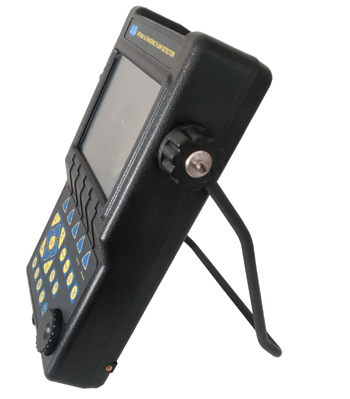

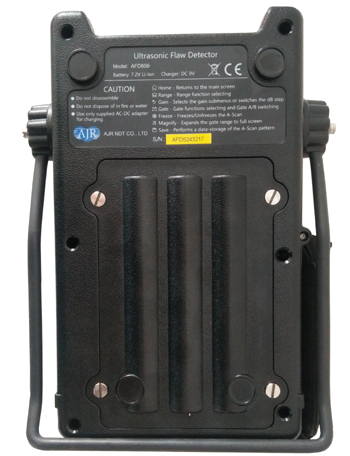

AFD856 Ultrasonic Flaw Detector

Product Infomation
The AFD856 is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its full-speed USB port. The instrument incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials. The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
  • Model:AFD856
  • Specifications:0~9999mm
  • Color:Black
  • Brand:AJR
Details

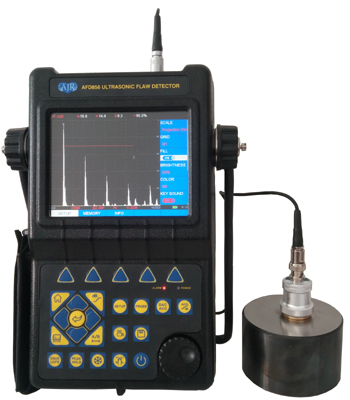

AFD856 Ultrasonic Flaw Detector

Introduction

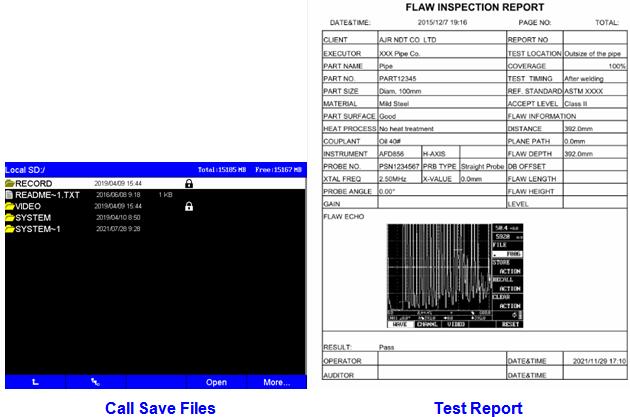

The AFD856 is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its full-speed USB port.

The instrument incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.

The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
Features

Ø Calibration wizard for correcting the transducer zero offset and/or material velocity

Ø Flaw Locating: Live display Sound-path, Projection (surface distance), Depth, Amplitude,

Ø Flaw sizing: Automatic flaw sizing using AVG/DAC, speeds reporting of defect acceptance or rejection.

Ø Digital Readout and Trig. Function: Thickness / Depth can be displayed in digital readout when using a normal probe and beam path, Surface Distance and Depth are directly displayed when angle probe is in use.

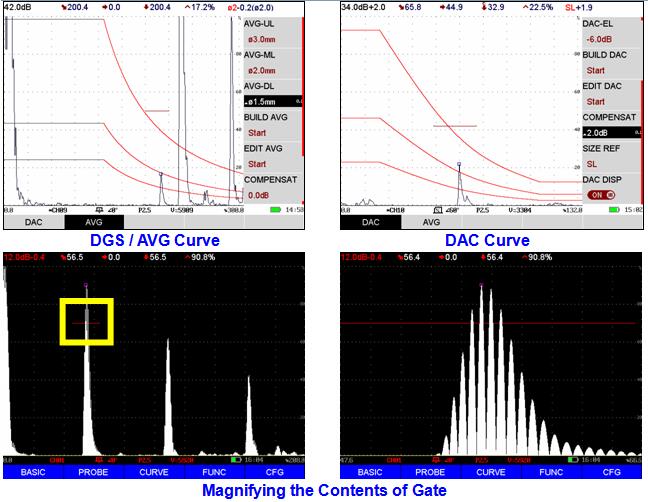

Ø Both the DAC and the AVG method of amplitude evaluation are available.

Ø Curved Surface Correction feature

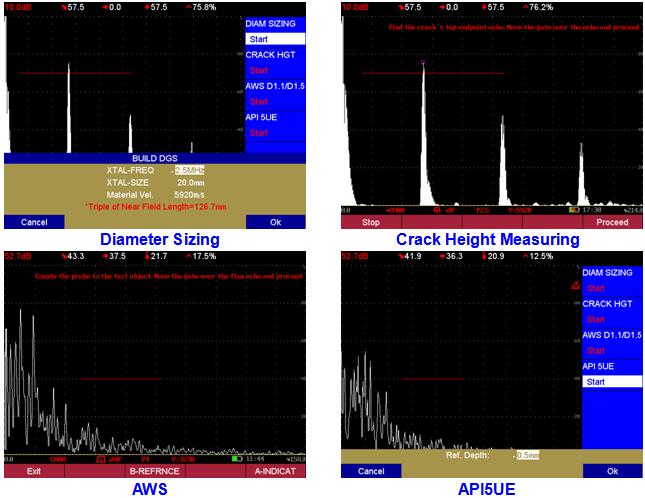

Ø Crack Height Measure function

Ø Weld figure feature

Ø Magnify gate:Spreading of the gate range over the entire screen width

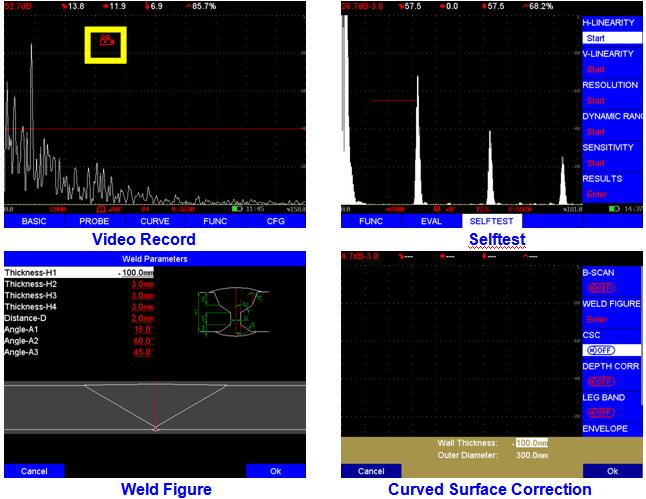

Ø Video record and play

Ø Auto-gain function

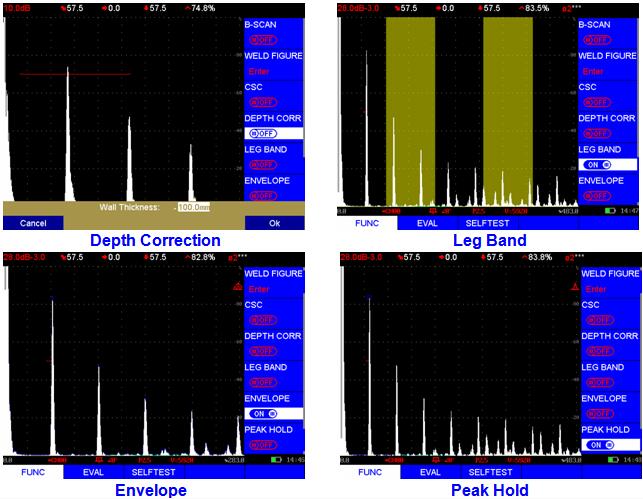

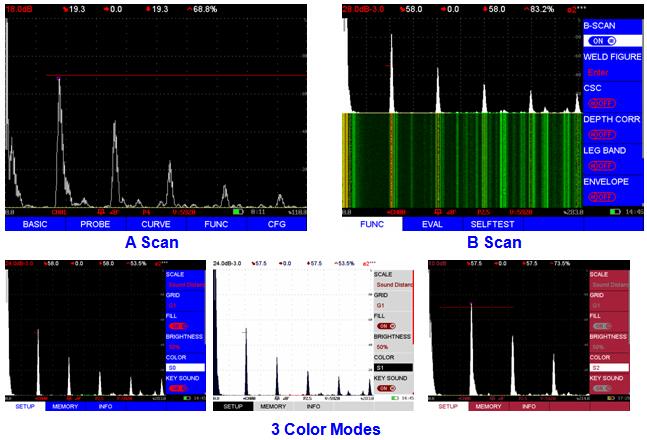

Ø Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display

Ø Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.

Ø Leg band function: Helps to identify the legs of the echo more clearly in angle beam inspection.

Ø A Scan Freeze:Display freeze holds waveform and sound path data

Ø B Scan feature

Ø AWS D1.1/D1.5 wizard

Ø Selftest wizard: Selftesting of horizontal linearity, vertical linearity, resolution, dynamic range and sensitivity.

Technical Specification

Channel

100 channels

Screen

640×480 pixels multi-color TFT LCD

Measuring Range

0-9999 mm in steel

Material Velocity

100 to 20000 m/s adjustable

Display Delay

-20 - 3400 µs

Probe Delay / Zero Offset

0 - 99.99 µs

Gain

110 dB max in selectable resolution 0.1 dB, 1.0 dB, 2.0 dB and 6.0 dB.

Probe Modes

Straight,  Angle, Dual Element and Thru-Transmission

Pulser

Tunable Square Wave Pulser

Pulse Repetition Frequency Range

10 Hz - 1000 Hz

Pulse Energy

200V, 300V, 400V and 500V selectable

Bandwidth (amplifier bandpass)

0.5 - 15 MHz

Damping

200Ω and 500Ω

Gate Monitors

Two independent gates controllable over entire sweep range: A and B gates

Rectification

Positive halfwave, Negative halfwave, Fullwave, RF

System Linearity

Horizontal: +/-0.1% FSW, Vertical: 2% FSH, Amplifier Accuracy +/-1 dB

Reject (suppression)

0 to 80% full screen height

Units

Metric or imperial

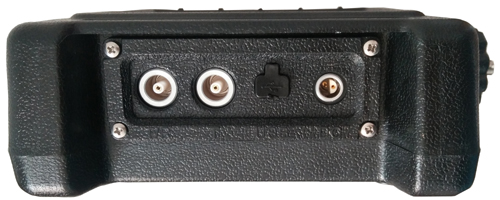

Probe Connection Port

LEMO01 (Optional BNC)

Data Port

USB

Power Requirements

AC Mains 100-240 VAC, 50-60 Hz

Dimensions

280×220×70 mm

Operating Temperature

-10 - 50

Storage Temperature

-30 - 50

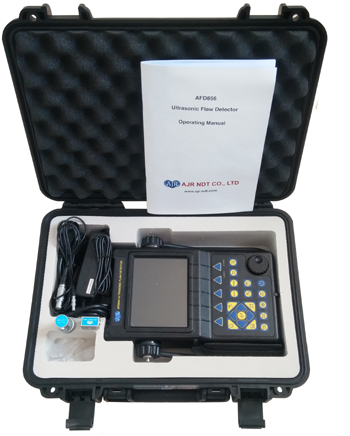

Standard Accessories

No.

Item

Qty.

1

AFD856 Main Body

1

2

Straight Beam Probe: 4MHz, 10mm, Lemo00 Connector

1

3

Angle Probe: 4MHz, 8x9mm, 60 Degree, Lemo00 Connector

1

4

Machine-probe Cable

1

5

Rechargeable Battery

1

6

Power Adapter (Charger)

1

7

Power Cable

1

8

Data Software for PC

1

9

USB Cable

1

10

Instrument Case

1

11

Manual

1

12

Guarantee Card

1

13

Packing List

1

14

Calibration Certificate

1
