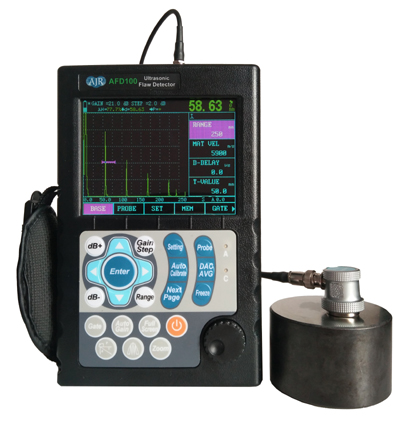

AFD100 Ultrasonic Flaw Detector

Product Infomation
AFD100 is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.
  • Model:AFD100
  • Specifications:0~6000mm, Language:English, Korea, Italian, French, German, Portugese
  • Color:Black
  • Brand:AJR
Details

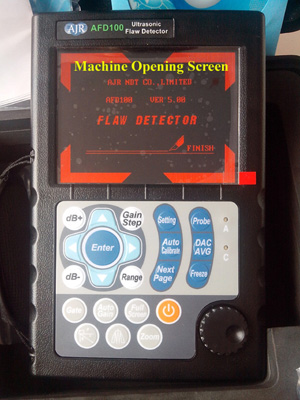

AFD100 Digital Type Ultrasonic Flaw Detector

Features

Ø Automatic calibration; Automatic gain;

Ø DAC, AVG, TCG, B scan, AWS;

Ø High-speed capture and very low noise;

Ø High contrast viewing of the waveform from bright;

Ø Powerful pc software and reports can be export to excel;

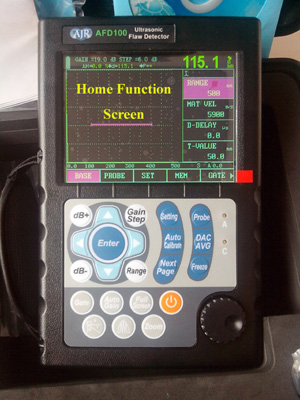

Function

Ø Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф);
Ø Automated switch three staff gauge ((Depth d, level  p, distance s);

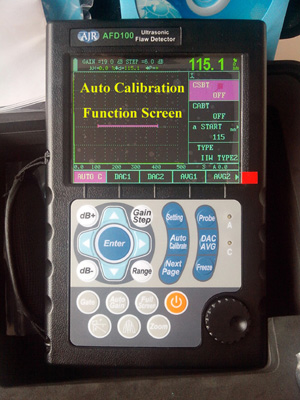

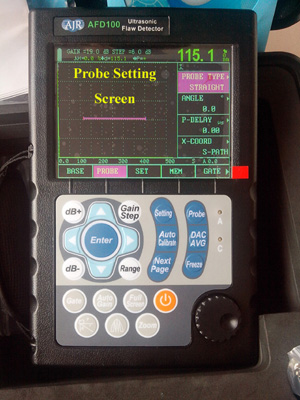

Ø Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;

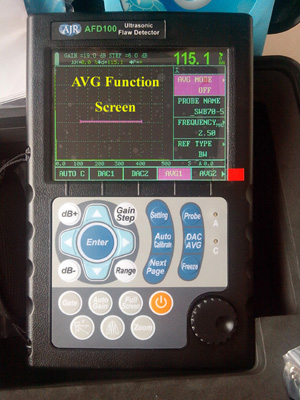

Ø Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated;
Ø 6dB DAC functions;
Ø 100 independence setup, any criterion can be input freely, we can work in the scene without test block;

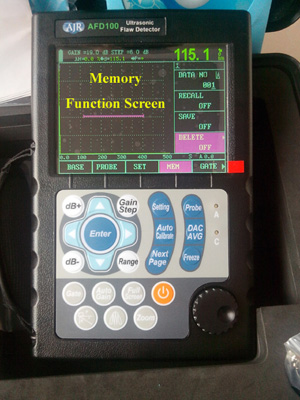

Ø Big memory of500 Agraph;
Ø Automated gain and gain scan;
Ø Peak Hold and Peak Memory;

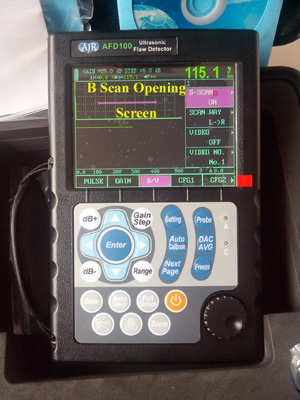

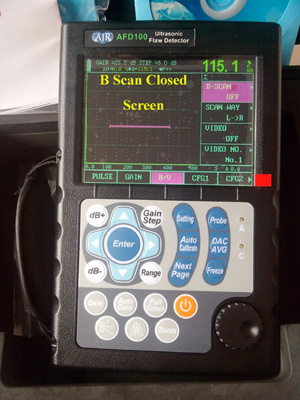

Ø B scan;
Ø AWS D1.1;
Ø Automated make video of test process and play; use upan, the length of video is unlimited;
Ø Powerful pc software and reports can be export to excel;
Ø Li battery, continue working time up to 12 hours;
Ø The embeded software can be online updated.
Other assistant function

Ø Display freeze;

Ø Automated echo degree;

Ø Angles and K-value;

Ø Lock and unlock function of system parameters;

Ø Electronic clock calendar;

Ø Two gates setting and alarm indication;

Ø Gate and DAC alarm.

Specifications

Ø Measuring Range (mm): 0   6000

Ø Channels: 100

Ø Frequency Range (MHz): 0.5   15

Ø Material Velocity (m/s): 1000   15000

Ø Vertical Linearity Error: ≤3%

Ø Horizontal Linearity Error: ≤0.1%

Ø Sensitivity Leavings: ≥62dB

Ø Dynamic range: ≥32dB

Ø Resolving Power: ≥36dB

Ø Gain (dB): 0   120

Ø Measurement Mode: Single, Dual, Thru

Ø Reject: 0~80%

Ø Pulse Displacement (μs): -20   +3400

Ø Zero (μs): 0.0   99.99

Ø Port Type: BNC(Q9) or Lemo 01(C9)

Ø Operating Temperature  (℃): -2050

Ø H×W×D(mm): 240×156×48

Ø Weight (kg): 1.0with battery

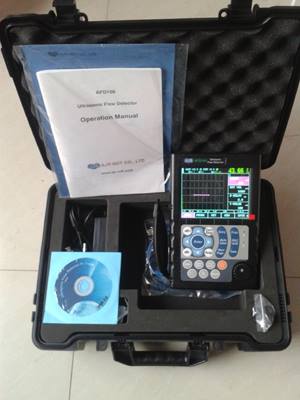

Standard Accessories:

No.

Item

Quantity

1

AFD100 Main Body

1

2

Straight Beam Probe

1

3

Angle Probe

1

4

Machine-probe Cable

1

5

Power Adapter (Charger)

1

6

Data proceeding Software

1

7

USB communication Cable

1

8

Manual

1

9

Instrument Case

1

10

Guarantee Card

1

11

Packing List

1
