AJR UV-LED 6000P+ Handheld Rechargeable UV LED Lamp

Product Infomation

 Original imported UV LED light source  The content of UV-B is 0.  3-4 hours of battery life.  Quick replacement battery  Including the weight of the battery less than 560 g.  External without wiring  Quartz and optical glass module, non PMMA material, excellent weather resistance.  Continuous working outside surface temperature＜8K(5℃)  Include filter glasses, white light less than 20LUX.  Input AC100-230V.  Meets ASTM-E 3022 standard

Model:AJR UV-LED6000P+
Specifications:UV intensity: 6000 μw/cm2 at 15 inch (at 380mm)
Color:Black
Brand:AJR

Details

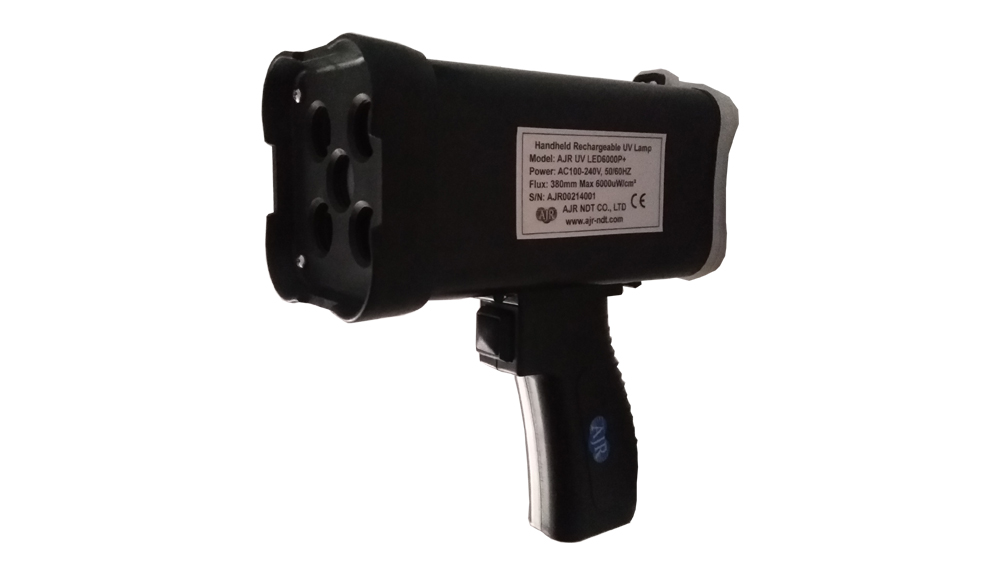

AJR UV-LED 6000P+ Hand Held Rechargeable UV LED Lamp

Separate 4 UV LED LAMP + 1 White Lamp

Characteristics

l Original imported UV LED light source

l The content of UV-B is 0.

l 3-4 hours of battery life.

l Quick replacement battery

l Including the weight of the battery less than 560 g.

l External without wiring

l Quartz and optical glass module, non PMMA material, excellent weather resistance.

l Continuous working outside surface temperature＜8K(5℃)

l Include filter glasses, white light less than 20LUX.

l Input AC100-230V.

l Meets ASTM-E 3022 standard

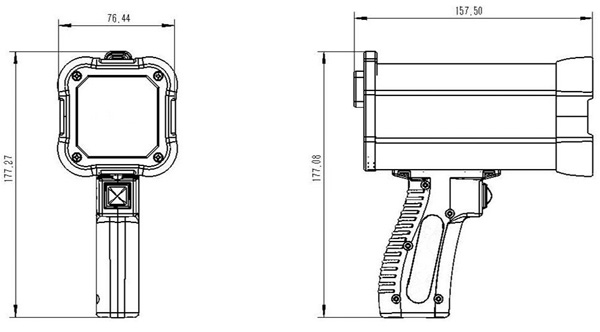

Outline dimension drawing

Unit: mm

Specification

Parameters
Project	Parameter
Form	Handheld type
UV(Light)-FLUX Room temperature25℃380mmdistance	UV-LED6000P+:＞6000uW/cm²
White Light	1500LUX
Effective coverage area 380mm calibration	Diameter of about 270mm
Wavelength	Room temperature 25℃, 365nm±3nm（UVA）
FLUX Error	0-40℃ ±10％

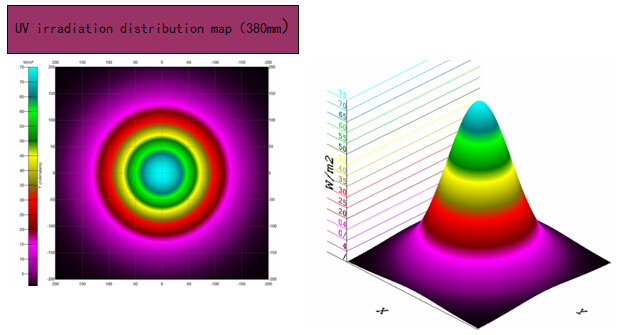

Light distribution characteristic	Center light distribution
Power source	AC100-240V, 50/60Hz
Power	UV LED-12VA
Overall dimensions	157.5mm（W）76mm（D）177mm（H）
Weight	560g with battery
The charging time	2-3H
Battery capacity	2600mA / H 12.6V
Battery life (total time)	UV LED 2-3H or Light 7H

The above parameters is typical value. Parameters are subject to change without prior notice
