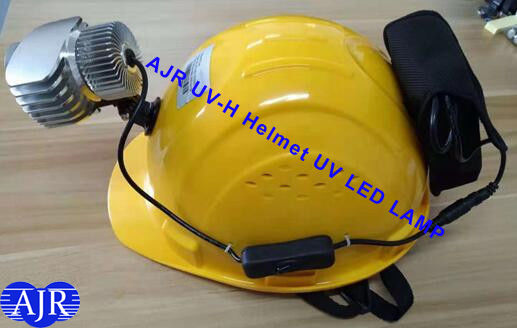

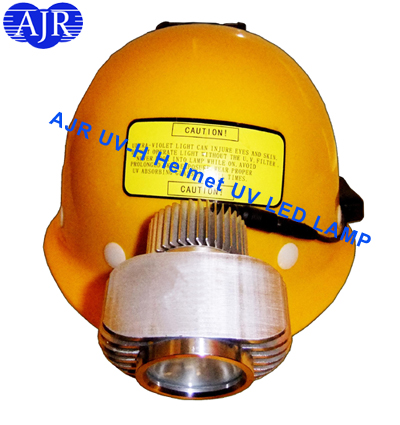

AJR UV-H Overhead Helmet Rechargeable UV LED Lamp

Product Infomation

User can put this helmet UV LED Lamp on head. Then it can work on worksite easily without use hand. Main Application a. Fluorescence Penetrant Testing b. Fluorescence Magnetic Particle Flaw Detection c. Fluorescence Leak Detection

Model:AJR UV-H
Specifications:UV intensity: 5000μw/cm2 at 15 inch (at 380mm)
Color:Yellow
Brand:AJR

Details

AJR UV-H Overhead Helmet type UV LED LAMP

Main Application

Fluorescence Penetrant Testing
Fluorescence Magnetic Particle Flaw Detection
Fluorescence Leak Detection

Other Application

Oil Stain, Blot Testing
Special Gas, Oil and Gas Pipeline Testing
Fluorescence Reflection Detection for Special Materials
Criminal Investigation and Legal Medical Expert Survey
Paper Money Authentication, Jewel Appreciation
Agriculture, Foodstuff, Medical Treatment and other relevant industries.

Technical Parameters

Item	Parameters
Ultraviolet illumination	5000uW/cm2
error	0~40℃, ±10%
Light distribution characteristics	Center for light distribution
power supply	AC100~240V, 50/60Hz
power	UV LED-10VA
The wavelength	365nm±3nm(UVA)
Overall dimensions	233(W)240(D)220(H)mm
weight	800g
Battery capacity	5800mA/H
Battery life	5-6H

Standard accessories:

No.	Item	Qty.
1	Main unit	1
2	Carrying case	1
3	Calibration certificate	1
4	Specification File	1
5	Guarantee Card	1
6	Packing List	1
