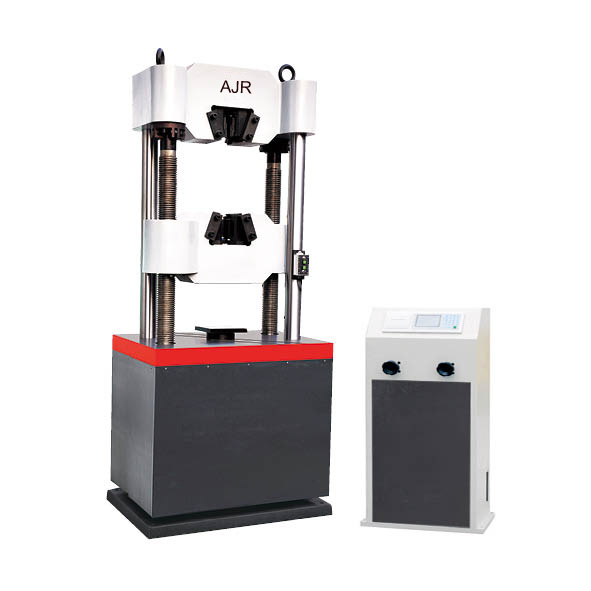

Series AEW-Y2000S Liquid Crystal Digital Display Pressure Testing Machine

Product Infomation
This testing machine is mainly used for the strength tests of materials like brick, stone, cement, concrete and other building materials. It is in line with GB/T50081-2002 standard, and is able to be used in mechanical tests of other materials. This machine uses hydraulic loading. It has the functions of e- measurement of force, digit display of load, acceleration display, maximum load retention, and overload protection, as well as power-off data retention.
  • Model:AEW-Y2000S
  • Specifications:2000KN
  • Color:White
  • Brand:AJR
Details

Series AEW-Y2000S Liquid crystal digital display pressure testing machine

I. Main Purpose

This testing machine is mainly used for the strength tests of materials like brick, stone, cement, concrete and other building materials. It is in line with GB/T50081-2002 standard, and is able to be used in mechanical tests of other materials.

This machine uses hydraulic loading. It has the functions of e- measurement of force, digit display of load, acceleration display, maximum load retention, and overload protection, as well as power-off data retention.

II. Main Technical Parameters

Max. test force

2000kN

Range and measuring range

4%-100%FS

Relative error of displayed values

≤±1%

Size of upper and lower plates

Φ225mmΦ300mm

Maximum distance between the upper and lower plates

320mm

Piston stroke

30mm

Piston diameter

Φ250mm

Rated pressure of the hydraulic pump

40MPa

Power supply and power

Three-phase 0.75kW

Overall dimension

800×500×1200mm

Net weight

Approx.750Kg

Note: This parameter list is only for information and is subject to change without notice. The real objects prevail for the products of our company.
