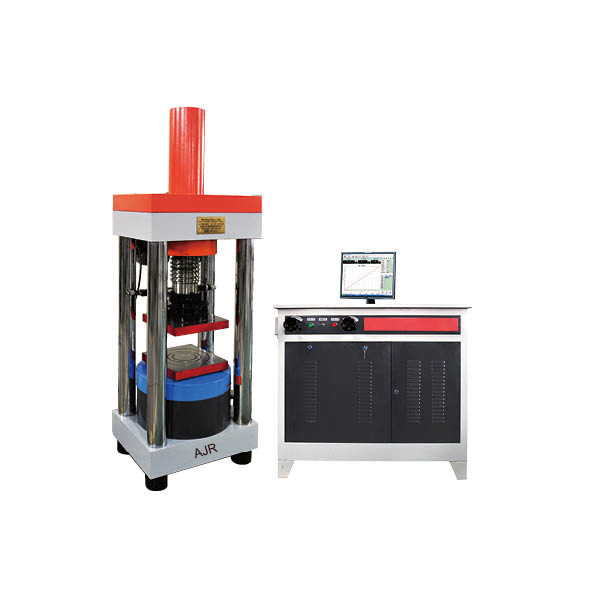

Series AAW-2000B／3000B Automatic Pressure Testing Machine
I. Main purpose
Combining modern mechanical, electrical and hydraulic technology, it is a high-tech universal automatic pressure testing machine. It is fully in line with GB/T50081-2002, the test method standards of the mechanical properties of concrete. It is mainly used for compressive strength tests of brick, stone, cement, concrete and others, also for the compressive performance tests of other materials.
II. Main technical parameters
|
Max. test force |
2000kN |
3000kN |
|
Range and measuring range |
4%-100%FS |
4%-100%FS |
|
Relative error of displayed values |
≤±1% |
＜±1% |
|
Size of upper and lower plates |
260×300mm |
370×370mm |
|
Maximum distance between the upper and lower plates |
320mm |
330mm |
|
Piston stroke |
30mm |
50mm |
|
Piston diameter |
Φ250mm |
Φ310mm |
|
Rated pressure of the hydraulic pump |
40MPa |
40MPa |
|
0.75kW |
1.1kW |
|
|
Overall dimension |
800×500×1200mm |
1000×600×1500mm |
|
Net weight |
Approx.750Kg |
1800Kg |
|
Note: This parameter list is only for information and is subject to change without notice. The real objects prevail for the products of our company. |
||
